Features
- 42-inch international standard network cabinet, cold-rolled steel, 800-1000KG static load
- Network cabinet with removable HD tempered glass cover for interior inspection
- Network cabinet’s front/rear mesh doors with spring locks, safe & easy to operate
- Network cabinet with adjustable mounting rails (multi-position slots) to adapt to equipment depths
- Network cabinet with adjustable built-in shelf, easy-install, sturdy & high-load

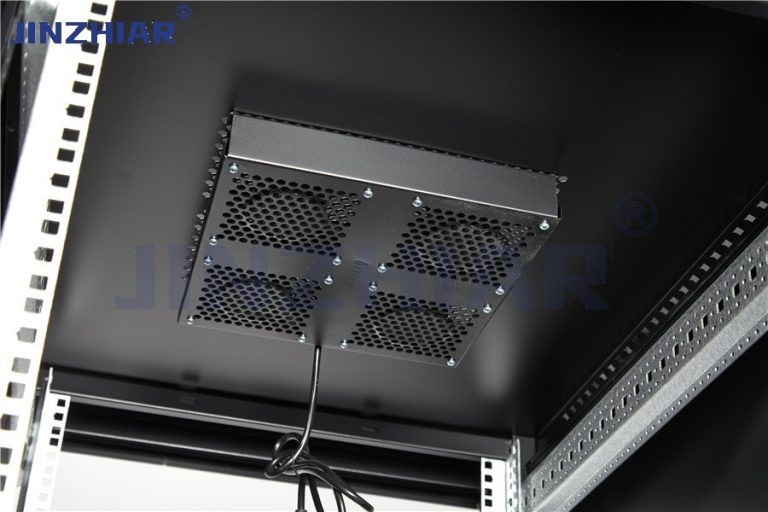

- Network cabinet with top pre-installed fans for rapid heat dissipation, stable operation
- Network cabinet with removable side panels (both sides) to ease equipment install/maintain
- Network cabinet with top/bottom cable entry holes + grounding studs for flexible, safe wiring
- Network cabinet with 360° swivel casters (easy movement) & adjustable leveling feet (stability)
Specifications
| Item | Parameter |
| Cabinet Type | Server Rack |
| Available Sizes | 12U/18U/22U/27U/32U/37U/42U/47U |
| Material | Cold Rolled Steel Plate(SPCC) |
| size | 600*1200*42U |
| place of origin | Guangdong, China |
| brand name | JZJG or OEM |
| Product Name | Floor Standing Mesh/Glass Door Network Cabinet |
| Surface Finish | Degreasing, rust removal, phosphating, electrostat spraying |
| Certification | ISO9001/ISO14001/CE/RoHS |
| Loading Capacity | Static Loading: 1000kg |
| OEM Server | Accept |
| Color | Black |
| Application | Server Room/Data Center Server Rack/Network Cabling |
| Depth | 1200 mm |
| Degree of protection | IP20 |
| Width | 600mm |
Application Scenarios
Customization Support
We offer customization of cabinet dimensions (height, width, depth), material thickness, color, internal shelf configurations, ventilation layouts, and lock types. This ensures the cabinet perfectly fits diverse industry equipment setups and application – specific needs.
